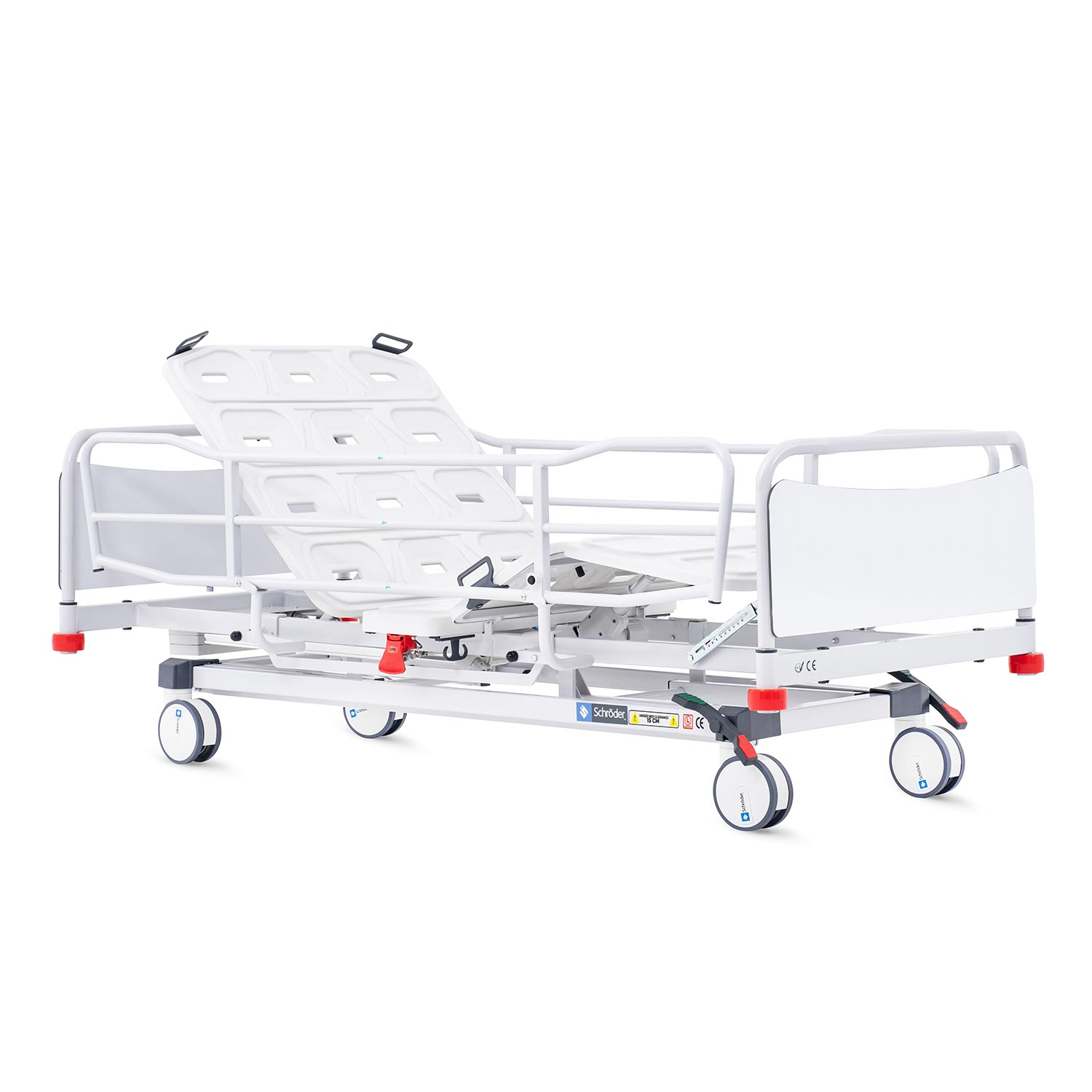

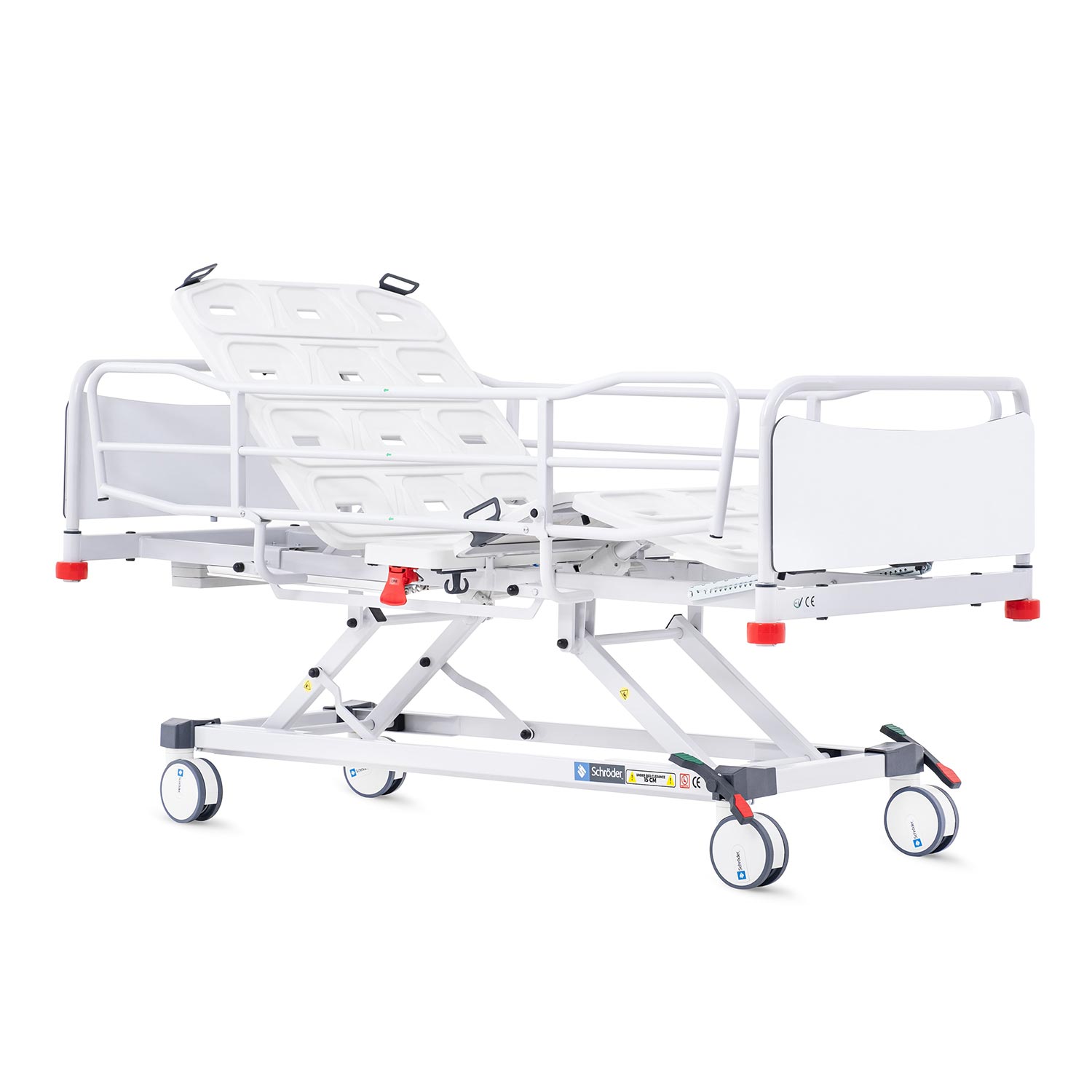

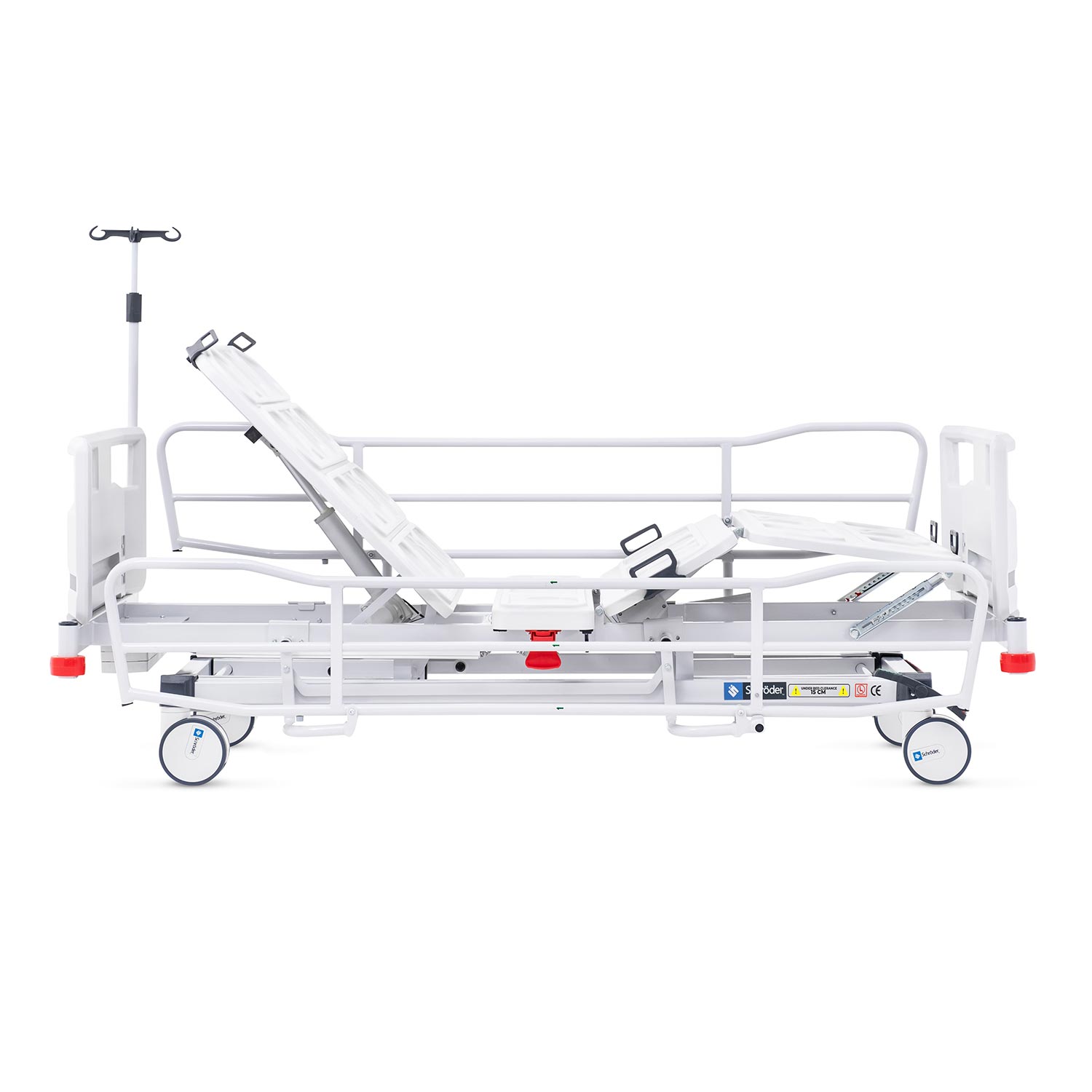

LJR 4050

BASIC POSITIONING & ADJUSTMENTS

• Height Adjustment Motors
• ⁠Backrest Adjustment Motor
• ⁠Thighrest Adjustment Motor
• ⁠Calfrest Mechanical Ratchet

MOBILIZATION

Its powered with two liner actuators which are hi-tech electrical devices able to convert rotational motion in low voltage DC motors into linear push/pull movements. LJR 4050 is an electric bed for Intensive care units, with a mattress platform in 4 jointed sections and height adjustment performed by high load capacity.

PLASTIC MATTRESS PLATFORM

The 85 cm x 190 cm mattress platform of the LJR 4050 bed has been adapted to aim the highest level of comfort for the patient. The mattress platform is made of ABS plastic parts and therefore is easy to clean, disinfect and detach. Optionally offered ergonomic design double layer 4 sections platfom specifically designed ventilation channels allow air to circulate under the mattress and reduce moisture. The mattress platform 4 sections made up recyclable and sanitizable material which is PP and silver nanoparticles (Ag NPs) compounds. 4 sections are washable easy to be removed and cleaned, with round edges and integrated mattress stoppers without sharp edges.

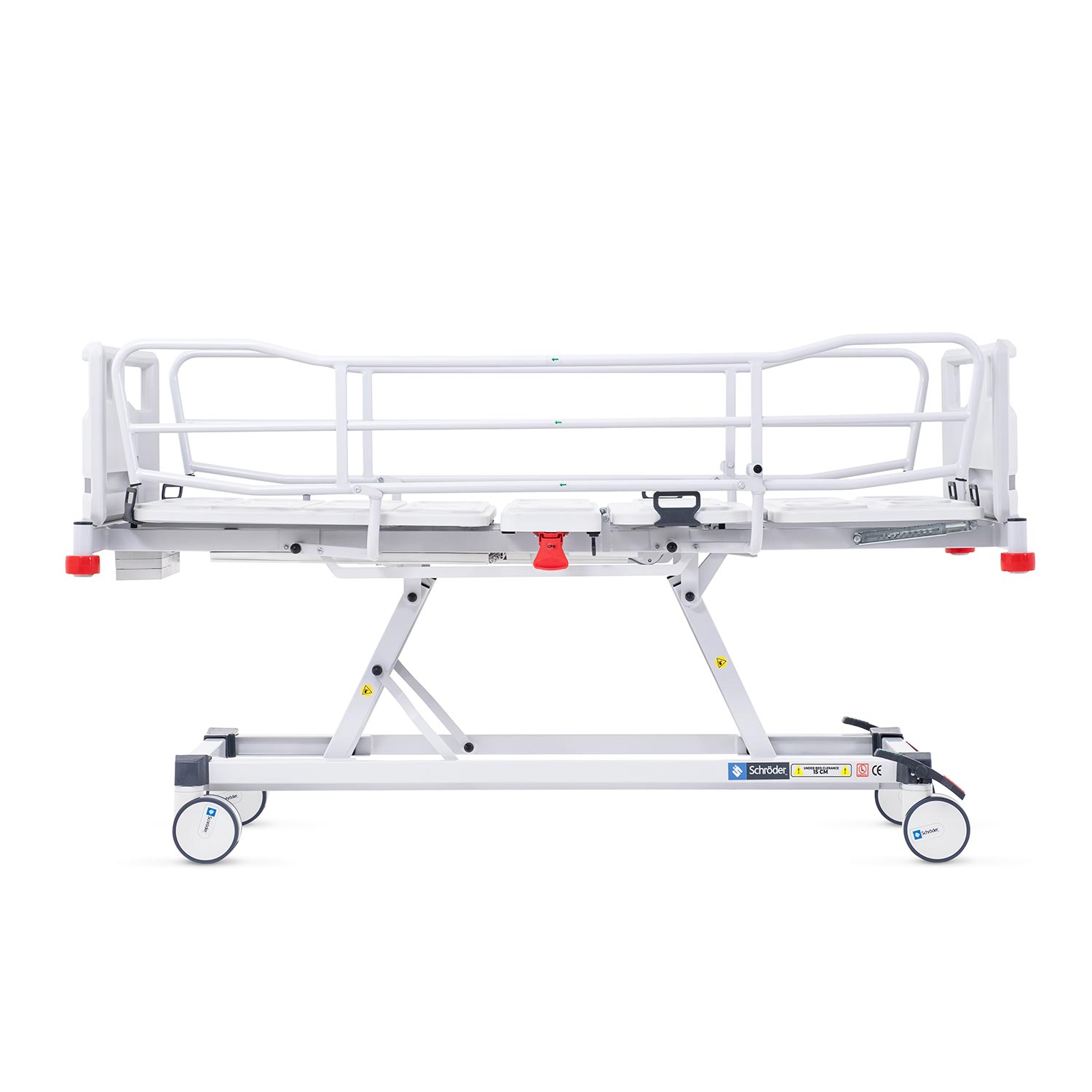

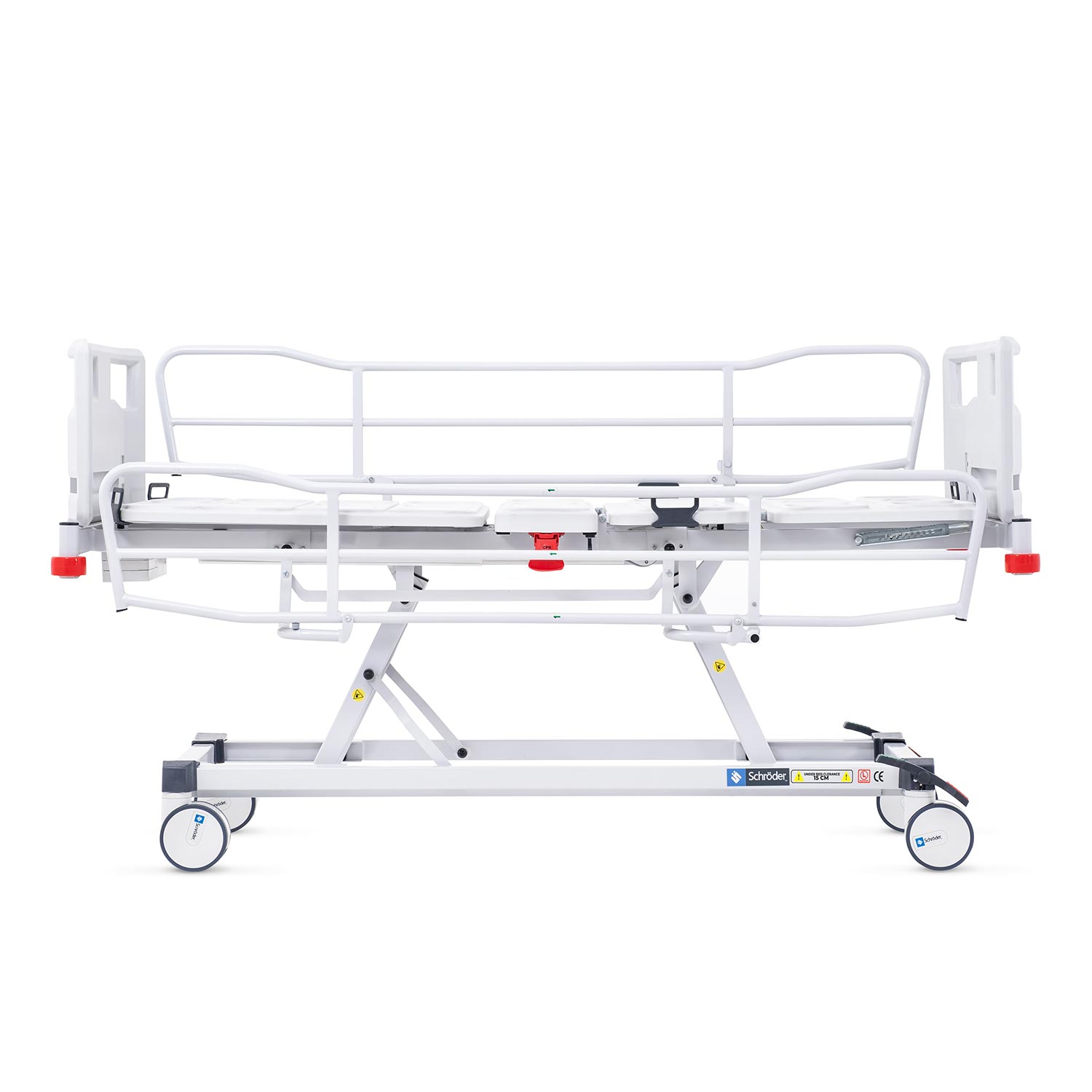

SIDE RAILS

Electric hospital bed LJR series side rails specially and ergonomic designed. The bed hosts of fold-down 2 section safety sides made up an epoxy powder coated metal. The appropriate designe increases patient mobilization and reduce the efforts of sanitarians for easy cleaning and disinfection. The design of the sections specially design for extra safety to prevent fall risk greatly attain 38 cm height above the mattress platform and a total lateral collapsible movement, in compliance with the standard for hospital beds CE EN 60601-2-52.

CONTROLLERS

A. HAND REMOTE CONTROL

Advanced hand control designed for high-end LJR series hospital beds. The LJR hospital bed hand control remote has up to twelve soft-touch buttons and Illuminated led indicators comes with a protection class IPX6 Washable. This control gives users optimal overview of the many adjustment options, movement patterns, and additional features, ensuring efficiency and precision when attending to patients.

B. HANDS-FREE ADJUSTMENTS WITH THE FOOT CONTROLS

LJR Series adapted with Bilateral high-low foot control foots allow hands-free adjustment of the bed height up/down for helping healthcare staff to the wound care, examinations and maximum patient hygiene needs.

C. NURSE CONTROL PENDANT

The LJR bed nurse Control pendant is a compact unit with up to 24 buttons that can be used as hand control keys or lock-outs. The lock-out function can be made visible by using yellow LEDs.

The LJR bed nurse control pendant allows nursing staff to retain direct control over critical positioning functions while giving the patient a limited degree of adjustment. This high degree of selective control is vital in cases such as spinal injuries and other similar conditions.

The LJR bed nurse control pendant has a flexible “hook” which enables it to be positioned according to the nurses wishes, out of reach of the patient and serves to block the hand control functions that may be inappropriate, or even dangerous to the patient.

AUTO REGRESSION (PATIENT COMFORT)

LJR series electric hospital beds is succesfully addapted with an auto-regression system during adjustments of backrest and leg automatically shift increasing the space on the pelvic area by creating an extra space of 15 cm. This care mechanism maximize comfort during recovery with allowing degreased pressure ulcers and significantly reduced pressure on the pelvis and sacral areas to enhance breathing and to avoid continuous repositioning of the patient on the bed.

CASTORS

LJR electric bed standard available in ø 150 mm washable, simultaneous Wheels with the options twin castors and directional locking system. Pretty and simple design for easy cleaning and disinfection.

MINIMUM HEIGHT INDICATORS

The bed automatically stoped and indicated with light on control panels when moving to the lowest position. The height lamp on the remote is in red. When the bed is in the lowest position, the lamp turns green to reduce the risk of falling.

BRAKE OFF INDICATOR

If the brakes do not engage, it warns caregivers with an audible tone that continues until one of the brake pedals is depressed.

EASY TO READ ANGLE INDICATORS

On site angle indicator assists in positioning the patient to the desired angle of elevation.

RASTOMAT

The footrest area is manually adjustable by toothed rack aiming counter rotations of the knee.

ONE TOUCH SHOCK POSITIONING

Places the patient in a flat trendelenburg position in an emergency.
